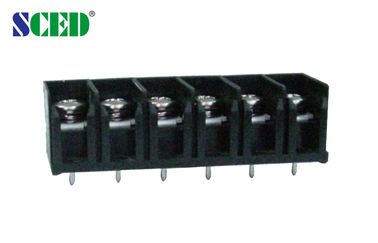

10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets

10.0mm 20A Barrier Terminal Block Brass Terminal Electronic Componenets

    • 10.0mm 20A  Barrier Terminal  Block Brass Terminal Electronic Componenets
    • 10.0mm 20A  Barrier Terminal  Block Brass Terminal Electronic Componenets
    • 10.0mm 20A  Barrier Terminal  Block Brass Terminal Electronic Componenets
    • 10.0mm 20A  Barrier Terminal  Block Brass Terminal Electronic Componenets
  • 10.0mm 20A  Barrier Terminal  Block Brass Terminal Electronic Componenets

    Product Details:

    Place of Origin: TB1000-01
    Brand Name: Shenzhen, China
    Certification: UL, CE
    Model Number: SCED

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 10.00mm Housing: PBT
    Terminal: Brass Rated Voltage: 300V
    Rated Current: 20A Sample: Free

    10.0mm 20A  Barrier Terminal  Block Brass Terminal Electronic Componenets

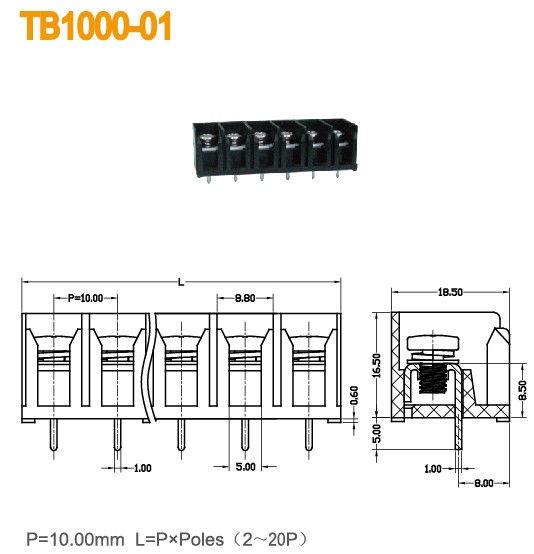

    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 15



    300 / 10

    Wire Range                       AWG

    16-24



    16-24

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    500 / 17.5

    630 / 17.5

    8000 / 17.5

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.8

    Stripping Length                    mm

    9-10

    Screw / Torque                    / lbf.in

    M 4 / 10-12



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:







    Applications:



    PCB, Frequency Converters, Server Site, Switch,

    Power Supply, Electric Lighting, Industry Control, Automation,

    Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
