Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier

Products - Barrier Terminal Block
  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Pitch
    8.20mm
  • Poles
    27P
  • Rated Voltage
    300V
  • Rated Current
    10A
  • Material
    PBT
  • Sample
    Free
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB820-00
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier

Get Price Contact Now

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier



Details:



Pitch: 8.20mm

Poles: 27pin

Current: 10A

Voltage: 300V



Spec.



1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
    13.00mm,13.50mm,14.50mm,20.00mm,21.00mm


2. With or without cover, one or two rows, from one level to three levels, etc.



3. Materials:  Plastic housing is PBT(UL94 V-0)


4. Operating temperature: -40℃~+120℃


5. Clamp cage and terminal is high quality brass or copper  screw is  high-quality steel





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.6

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3 / 5-7





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:







Applications:



PCB, Frequency Converters, Server Site, Switch,

Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

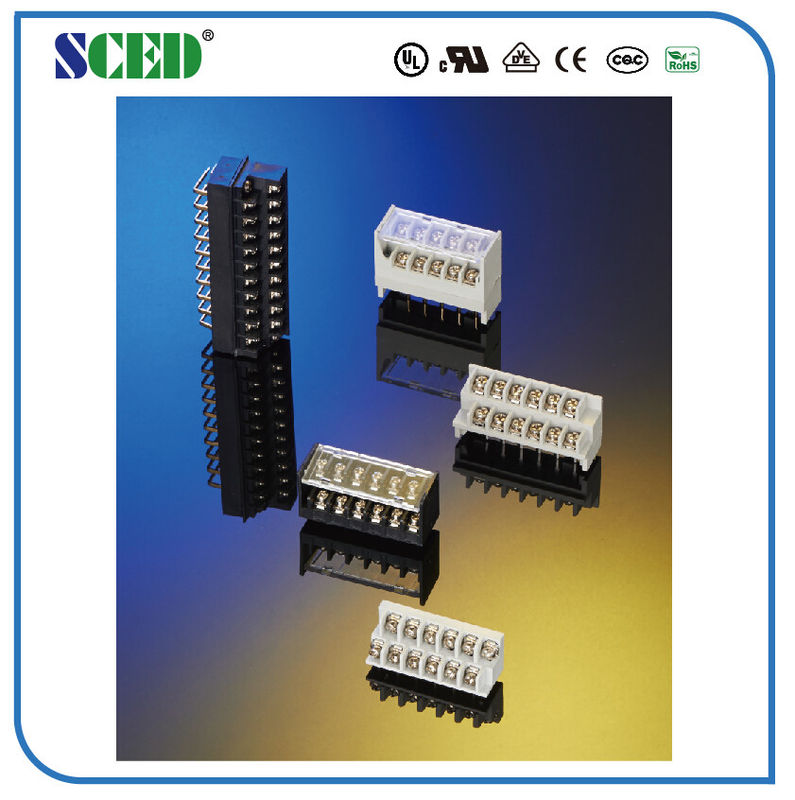

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier 0

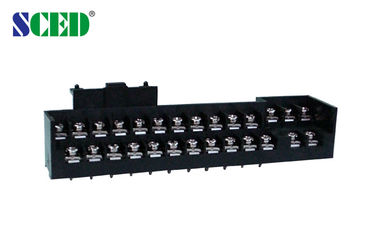

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier 1
