Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TB762-05 |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Item: | Barrier | Pitch: | 7.62mm |
---|---|---|---|
Wire Range: | 14-22 AWG | Insulation Material: | PBT |
Terminal: | Brass | Screw: | Steel/ M3 |
Poles: | 4-20 P | Torque: | 5-7 Ibf.in |
High Light: | barrier type terminal block,pcb terminal blocks |
Two Row Screw Barrier Terminal Block 7.62mm Fence Strips With Pins 300V 15A
Quick Detials:
Type: Screw type
Pitch: 7.62mm
Double level screw
AWG: 14-22
300V/15A
Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
Wire Range AWG |
14-22 |
|
14-22 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
2.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
Terminal / Plating |
Brass /Tin Plated |
||
Screw / Plating |
Steel / Nickel Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.6 |
||
Stripping Length mm |
7-8 |
||
Screw / Torque / lbf.in |
M 3 / 5-7 |
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Drawing:

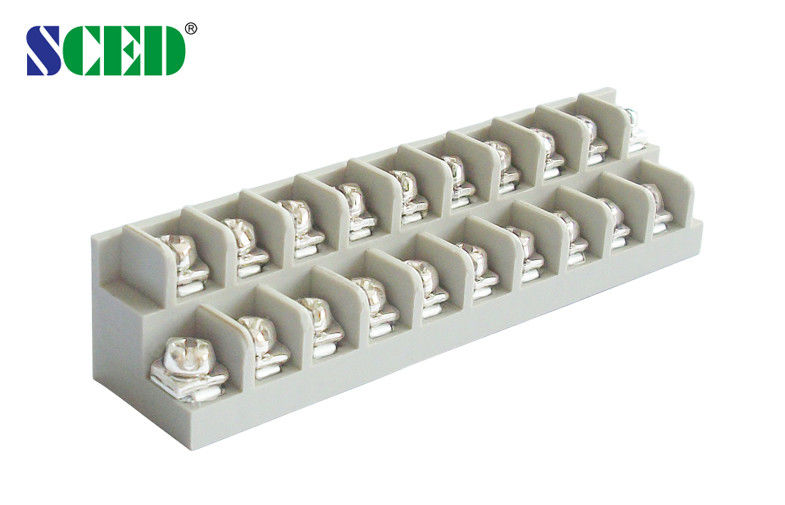

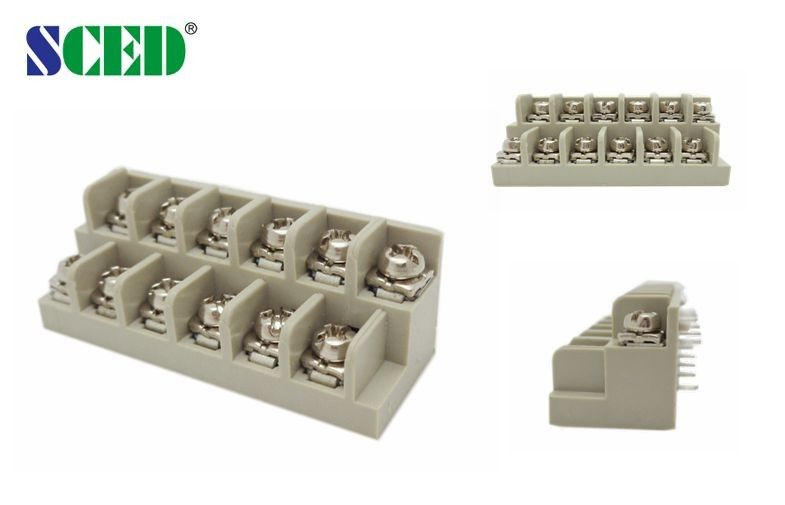

Photos:
