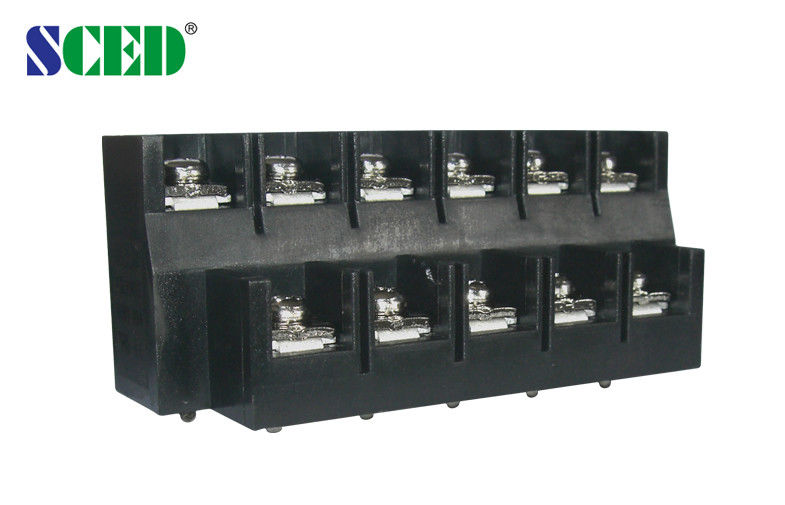

Plastic PA66 Brass 20A Barrier Terminal Block Pitch 11mm Two Levels

Plastic PA66 Brass 20A Barrier Terminal Block Pitch 11mm Two Levels

  • Plastic PA66 Brass 20A Barrier Terminal Block Pitch 11mm Two Levels
  • Plastic PA66 Brass 20A Barrier Terminal Block Pitch 11mm Two Levels
Plastic PA66 Brass 20A Barrier Terminal Block Pitch 11mm Two Levels
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,VDE,CQC etc.
Model Number: TB1100-02
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.153-0.203
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Material: Brass Current: 30A
Voltage: 300V Type: Barrier
Available Poles: 2-22 Poles Inflammability Class: UL94, V-0
Contact Resistance: Less Than 8mΩ Rated Surge Voltage: No Abnormal Within 1 Minute
Pitch: 11.00 Mm Insulation Resistance: Above DC500V, 500MΩ
High Light:

Plastic PA66 Barrier Terminal Block

,

Two Levels Barrier Terminal Block

,

Brass 20A Power Terminal Blocks

20A Barrier Terminal Block 300V Pitch 11mm Plastic PA66 Brass Two Levels





Detailed product Description:



Pitch 11.00mm, 300V 30A, 4*2P-16*2P, Barrier Terminal blocks, power terminal blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Level;  ■Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

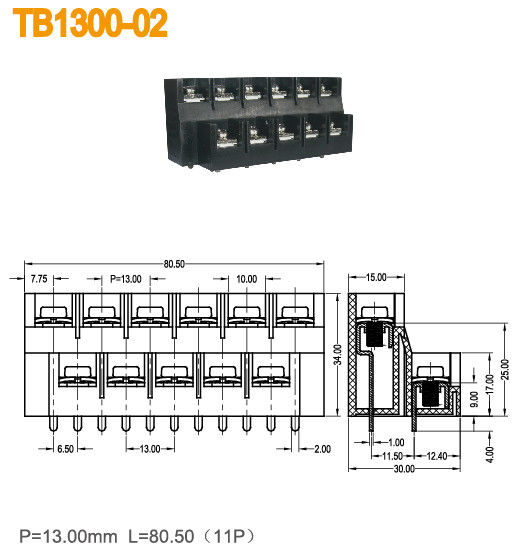

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30



300 / 10

Wire Range                       AWG

12-24



12-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

800 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ2.3

Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 4 / 10-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
