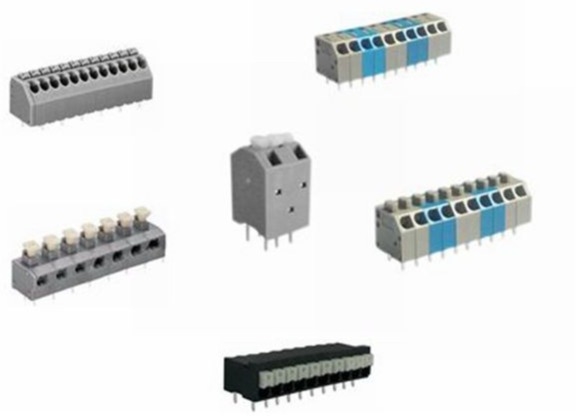

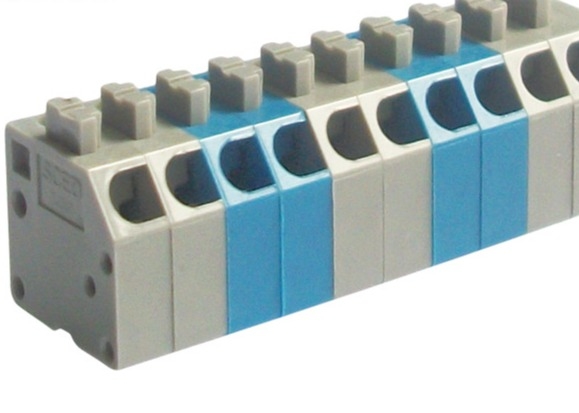

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P
Detailed product Description:
Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, screwless terminal blocks
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, such as Blue, Yellow, Black, Grey and White and so on.
Applications:
Our terminal blocks can be used in a lot of fileds, such as:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply Electric Lighting
2. Industry Control, Automation, Rail Transportation, Communication, Electric Power
3.Security, Medicine Equipment, Military, Elevator and so on.
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
14-26(sol) 16-26(str) |
|
14-26(sol) 16-26(str) |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
125 / 10 |
250 / 10 |
320 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring / Plating |
Stainless Steel / - |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
8-9 |
||
Competitive Advantage:
1. Flexible to design the exact part per customers' demand
2. Stable good quality with competitive price
3. Quick response
4. more than 1000 models for selection.
