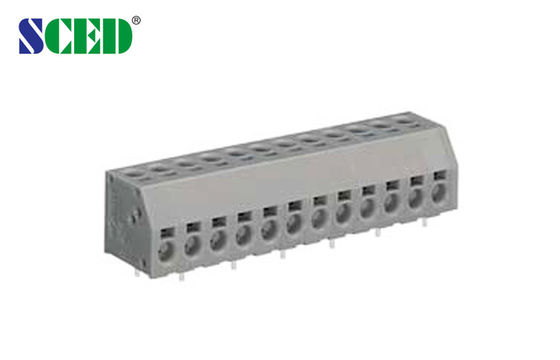

Pitch 5.0mm Spring Screwless Terminal Block 300V 10A 2-24 Poles 16-26 AWG
Detailed product Description:
Pitch 5.00mm, 300V 10A, 2P-24P, Spring Terminal blocks, Screwless terminals
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 16-26 | 16-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 10 | 320 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Spring / Plating | Stainless Steel / - | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.7 | ||
| Stripping Length mm | 8.5-9.5 | ||
Competitive Advantage:
1. More than 13 years of experience in designing and manufacturing
2. OEM and ODM service
3. More than 1000 models for selection
4. Good quality and competitive price
Applications:
Normally our products can be used in below fileds and industries:
Medical Equipment, Military, PCB, Security, Frequency Converters, Automation, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Rail Transportation and Communication and so on.
Our services cover all industries and reach all parts of the world.
