| Place of Origin: | Guangdong China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE etc. |
| Model Number: | TJ381-15 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.034-0.068 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Type: | Spring Type | Color: | Grey And Blue |
|---|---|---|---|
| Pitch: | 3.5mm | Current: | 10A |
| Voltage: | 300V | Plastic: | PA66 |
| Terminal: | Brass | Plating: | Nickel Plated |
| Rated Surge Voltage: | No Abnormal Within 1 Minute | Insulation Resistance: | Above DC500V, 500MΩ |
| High Light: | Pitch 3.50mm Spring Terminal Block,PA66 Spring Terminal Block,PA66 Plastic Screwless Terminal Blocks |
||

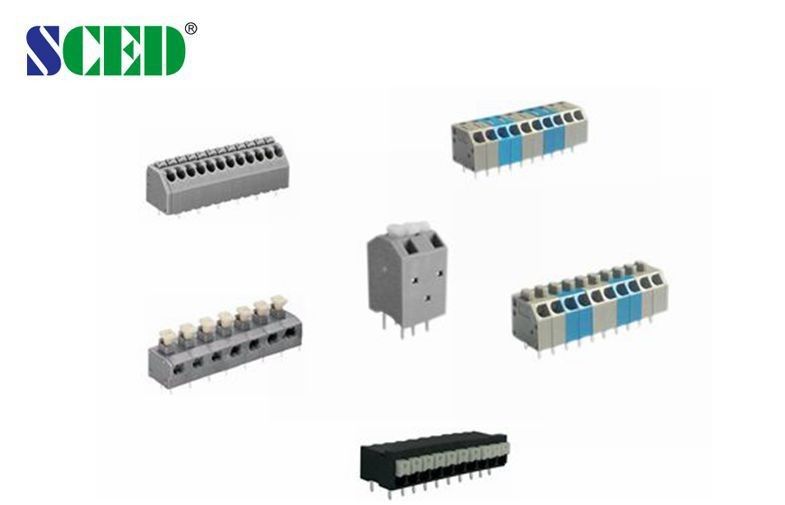

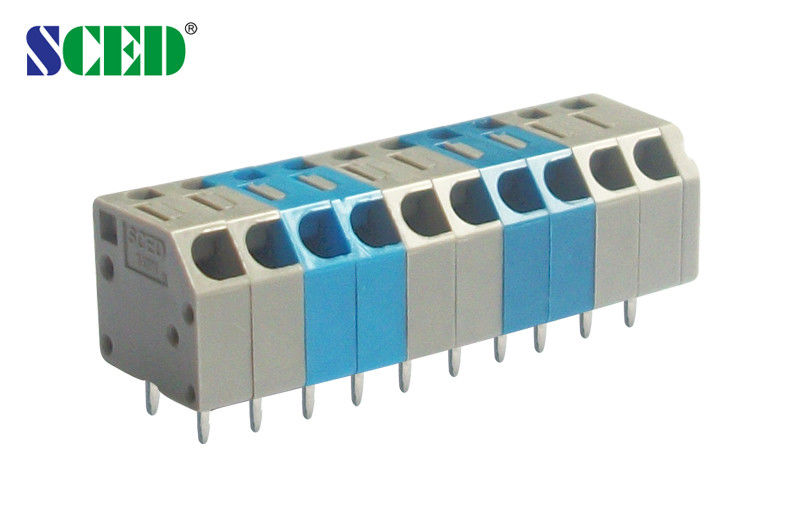

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P
Detailed product Description:
Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, screwless terminal blocks
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, such as Blue, Yellow, Black, Grey and White and so on.
Applications:
Our terminal blocks can be used in a lot of fileds, such as:
1.PCB, Frequency Converters, Server Site, Switch, Power Supply Electric Lighting
2. Industry Control, Automation, Rail Transportation, Communication, Electric Power
3.Security, Medicine Equipment, Military, Elevator and so on.
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
14-26(sol) 16-26(str) |
|
14-26(sol) 16-26(str) |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
125 / 10 |
250 / 10 |
320 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring / Plating |
Stainless Steel / - |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
8-9 |
||
Competitive Advantage:
1. Flexible to design the exact part per customers' demand
2. Stable good quality with competitive price
3. Quick response
4. more than 1000 models for selection.
