| Place of Origin: | Guangdong,China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE etc. |
| Model Number: | AO-10/4J-N11 |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.076-0.142 PER PCS |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Center Space: | 5.0*13.2mm | Rated Current: | 70A |
|---|---|---|---|
| Contact Resistance: | Less Than 8mΩ | Insulation Resistance: | Above DC500V, 500MΩ |
| Rated Surge Voltage: | No Abnormal Within 1 Minute | Screw: | M4 |
| Screw Material: | Steel | Screw Torque: | 10 Lbf.in |
| Terminal Body: | Brass | Plating: | Tin Plated |
| High Light: | M4 Screw Terminal Block Parts,70A Terminal Block Parts,5.0x13.2mm Terminal Block Accessories |
||

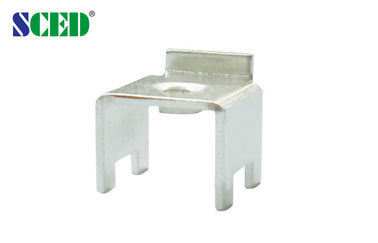

Metal Parts Terminal Block Accessories 70A High Current Brass 5.0*13.2mm Space
Detailed product Description:
Terminal Accessories, PCB terminal, Electrical components

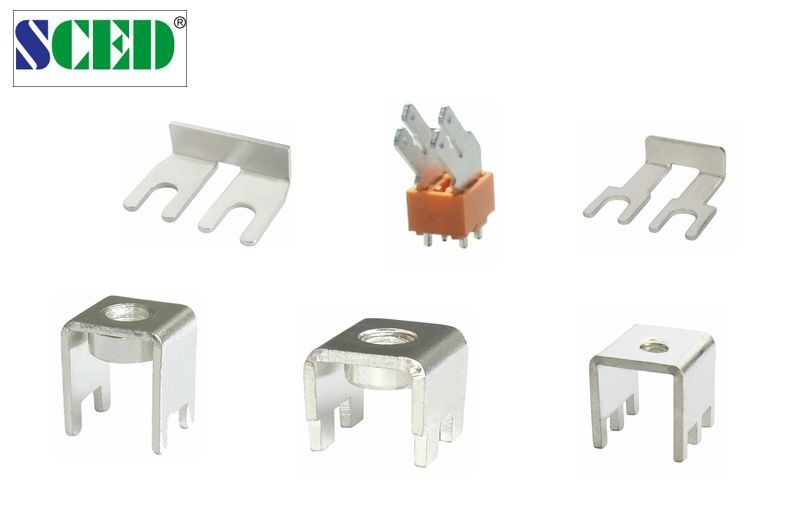

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.
Applications:
Our products are widely used in Military, Security, Communication, Medical Equipment, Power Supply, PCB, Frequency Converters, Server Site, Switch, Electric Lighting, Industry Control, Automation, Elevator, Rail Transportation and so on.
