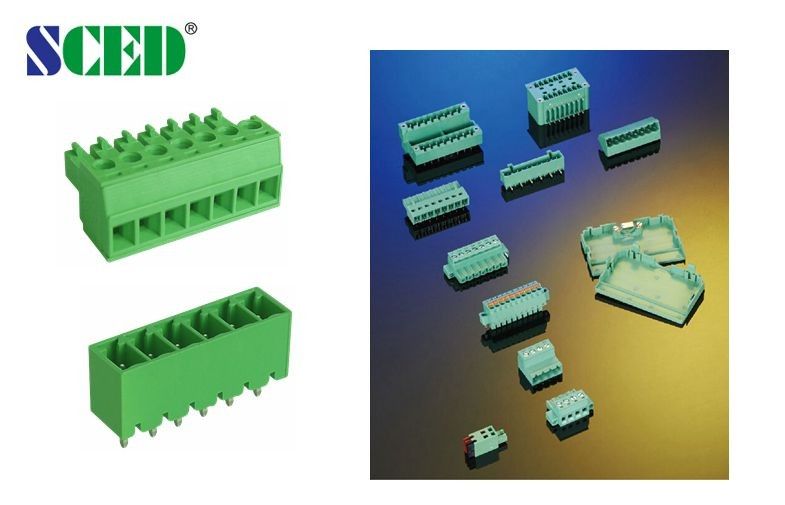

Pitch 3.81mm Pluggable Terminal Blocks 2-24 Poles Green Plastic Male Part

Pitch 3.81mm Pluggable Terminal Blocks 2-24 Poles Green Plastic Male Part

  • Pitch 3.81mm Pluggable Terminal Blocks 2-24 Poles Green Plastic Male Part
Pitch 3.81mm Pluggable Terminal Blocks 2-24 Poles Green Plastic Male Part
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TP381H-00
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.016-0.032 per pcs
Packaging Details: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Color: Green Pitch: 3.81mm
Poles: 2-24 Poles Current: 300V
Volt: 18A Plastic: PA66
Terminal: Brass Inflammability Class: UL94-V0
Plating: Tin Plated Rated Surge Voltage: 4 KV
High Light:

Pluggable Terminal Blocks for Server Site

,

UL Pluggable Terminal Blocks

,

Pitch 3.81mm Plug In Terminal Block

Pitch 3.81mm Pluggable Terminal Block 2-24 Poles Green Plastic Male Part





Detailed product Description:



Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double Levels;  □Triple Levels



This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07



Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.4

PinDimension                     mm

1.0 x 1.0



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
