Width 6.2mm Din Rail Terminal Blocks Ground Type AWG 30 - 10 Rail Transportation

Width 6.2mm Din Rail Terminal Blocks Ground Type AWG 30 - 10 Rail Transportation

  • Width 6.2mm  Din Rail Terminal Blocks  Ground Type AWG 30 - 10 Rail Transportation
Width 6.2mm  Din Rail Terminal Blocks  Ground Type AWG 30 - 10 Rail Transportation
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG5N-01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Highlight:

din rail mount terminal blocks

,

din rail terminals blocks

4mm2   Width 6.2mm  Din Rail Terminal Blocks  Ground Terminal Blocks  AWG 30 - 10





Detailed product Description:



Terminal Width: 4mm2 6.2mm, AWG:26-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks

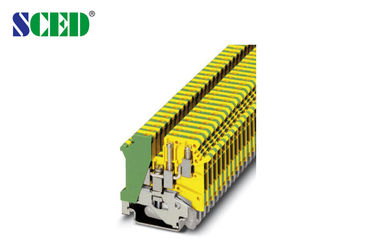

Width 6.2mm  Din Rail Terminal Blocks  Ground Type AWG 30 - 10 Rail Transportation 0





Parameter and Drawing Specifications:



Description Color Type
Terminal Green & Yellow TR-KG5N-01
Zack Strip White ZB6 SZS0.6x3.5
Rail Material Aluminum / Steel
Dimensions 6.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
Center Fixing Screw / Torque Nm M3 / 0.6-0.8
Stripping Length mm 8



























Width 6.2mm  Din Rail Terminal Blocks  Ground Type AWG 30 - 10 Rail Transportation 1





Standard color:

Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





Width 6.2mm  Din Rail Terminal Blocks  Ground Type AWG 30 - 10 Rail Transportation 2
