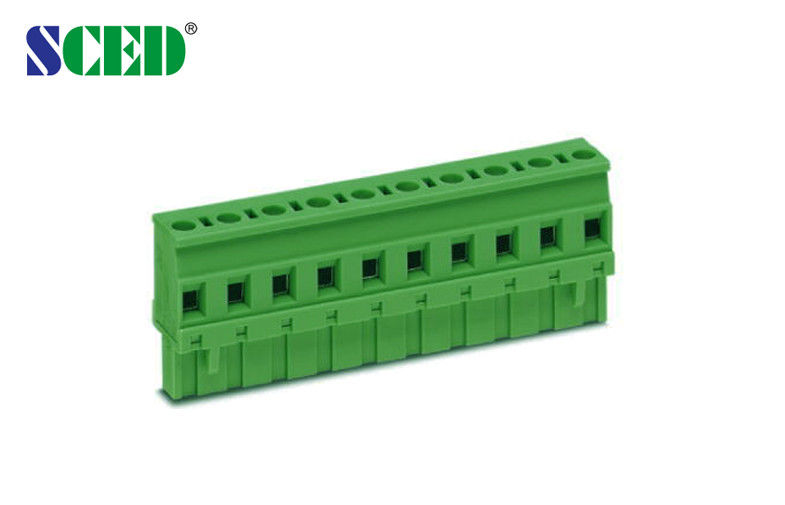

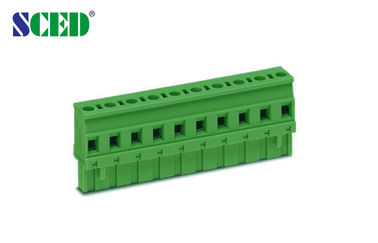

Plug Female Plug - in Terminal Block Pitch 7.62mm 300V 18A 2P - 16P

Plug Female Plug - in Terminal Block Pitch 7.62mm 300V 18A 2P - 16P

  • Plug   Female   Plug - in Terminal Block   Pitch 7.62mm   300V 18A   2P - 16P
Plug   Female   Plug - in Terminal Block   Pitch 7.62mm   300V 18A   2P - 16P
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508P-78
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

power distribution terminal block

,

power terminal block connector

Plug Female Plug - in Terminal Block Pitch 7.62mm 300V 18A 2P - 16P





■Single Level; □Double Levels; □Triple Levels



This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V



Plug   Female   Plug - in Terminal Block   Pitch 7.62mm   300V 18A   2P - 16P 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3





Plug   Female   Plug - in Terminal Block   Pitch 7.62mm   300V 18A   2P - 16P 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Plug   Female   Plug - in Terminal Block   Pitch 7.62mm   300V 18A   2P - 16P 2
