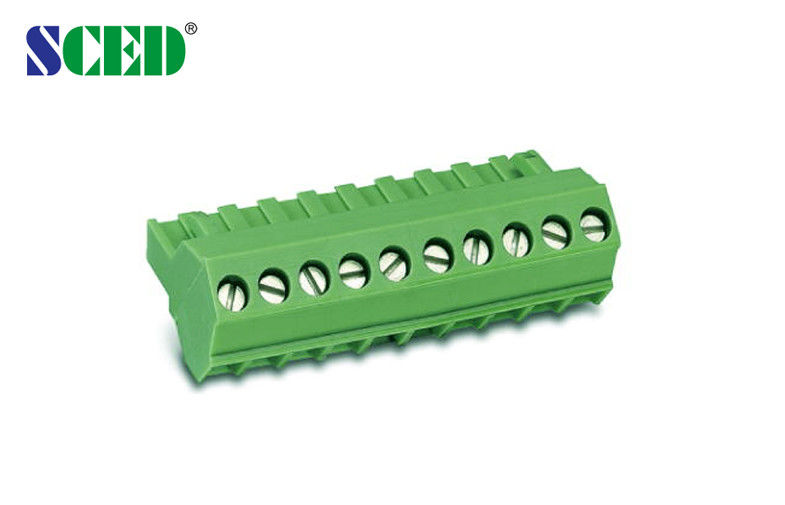

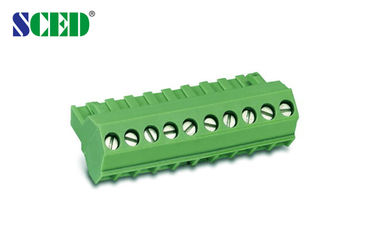

Pitch 5.08mm Plug - in Terminal Block 300V 18A Plug Female 2P - 22P Pluggable Terminal Block

Pitch 5.08mm Plug - in Terminal Block 300V 18A Plug Female 2P - 22P Pluggable Terminal Block

  • Pitch 5.08mm   Plug - in Terminal Block   300V 18A  Plug   Female  2P - 22P  Pluggable Terminal Block
Pitch 5.08mm   Plug - in Terminal Block   300V 18A  Plug   Female  2P - 22P  Pluggable Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508P-04
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

power distribution terminal block

,

electric terminal block

Pitch 5.08mm Plug - in Terminal Block 300V 18A Plug Female 2P - 22P Pluggable Terminal Block





■Single Level; □Double Levels; □Triple Levels



This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06



Pitch 5.08mm   Plug - in Terminal Block   300V 18A  Plug   Female  2P - 22P  Pluggable Terminal Block 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3





Pitch 5.08mm   Plug - in Terminal Block   300V 18A  Plug   Female  2P - 22P  Pluggable Terminal Block 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Pitch 5.08mm   Plug - in Terminal Block   300V 18A  Plug   Female  2P - 22P  Pluggable Terminal Block 2
