| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP508H-77 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Pitch: | 7.62mm | Material: | PA66 |
|---|---|---|---|
| Rated Voltage: | 300V | Rated Current: | 18A |
| Color: | Green, Other Color Available | Name: | Male Connector |
| High Light: | power distribution terminal block,electric terminal block |
||

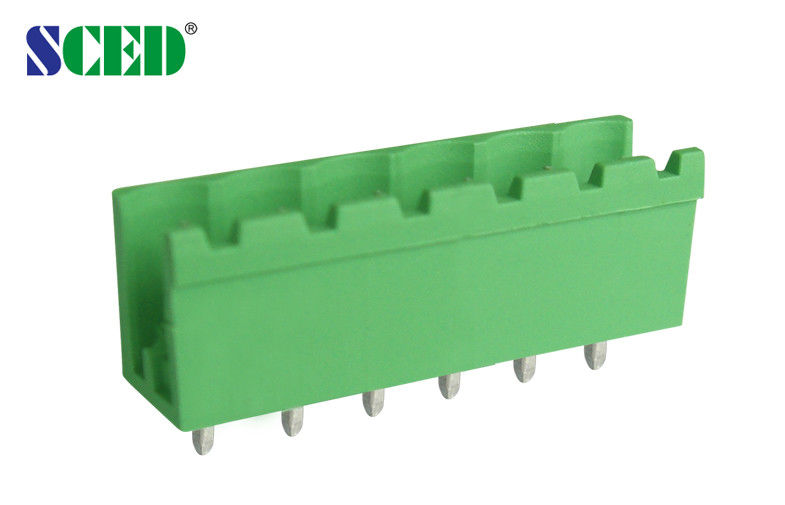

Pitch 7.62mm 300V 18A 2 - 16P Plug - in Terminal Block Header Male Sockets
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

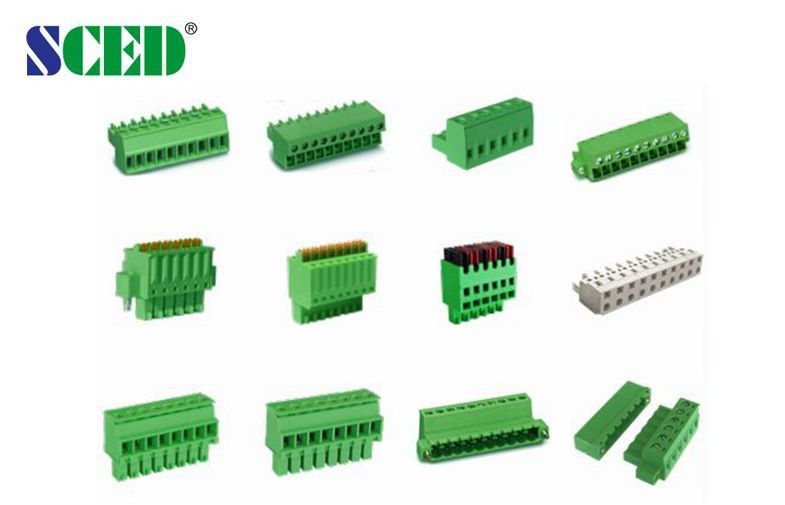

This male header match with female plugs’ series: TP508P-76,
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:

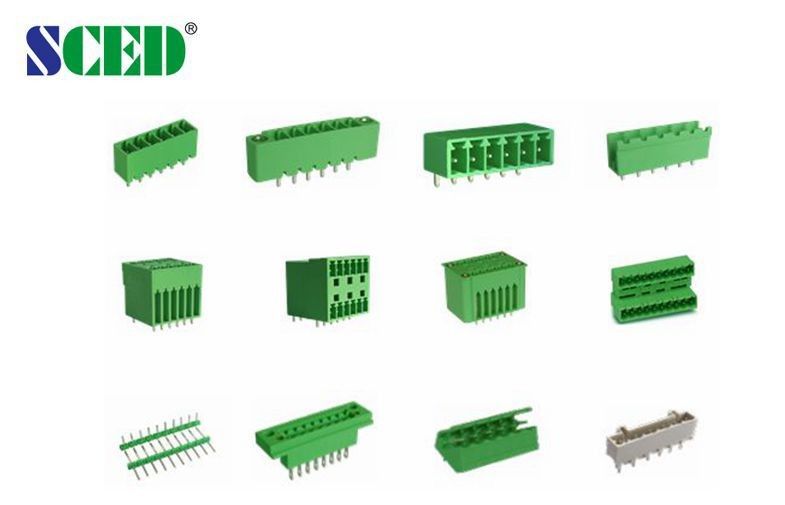

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Drawing Photo
