Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TP381P-22F |
Minimum Order Quantity: | 500 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Highlight: | power distribution terminal block,power terminal block connector |
---|

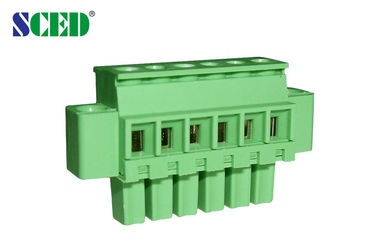

Pitch 3.50mm Plug Female Sockets Plug - in Terminal Block 300V 8A 2P - 20P
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/8 | ||
Wire Range AWG | 16-30 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Contactor / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M2 / 2-2.2 |
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
