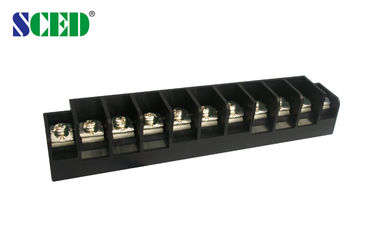

Pitch 20.00mm 600V 75A 11P Barrier Terminal blocks

Pitch 20.00mm 600V 75A 11P Barrier Terminal blocks

  • Pitch  20.00mm   600V  75A   11P   Barrier Terminal blocks
Pitch  20.00mm   600V  75A   11P   Barrier Terminal blocks
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TB2000-05
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

electrical terminal block

,

barrier type terminal block

Pitch 20.00mm 600V 75A 11P Barrier Terminal blocks





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 75 600 / 75 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 / 75 1000 / 75 1000 / 75
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4x8.4
Stripping Length mm 16-18
Screw / Torque / lbf.in M6 /20-22



Pitch  20.00mm   600V  75A   11P   Barrier Terminal blocks 0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Pitch  20.00mm   600V  75A   11P   Barrier Terminal blocks 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch  20.00mm   600V  75A   11P   Barrier Terminal blocks 2
