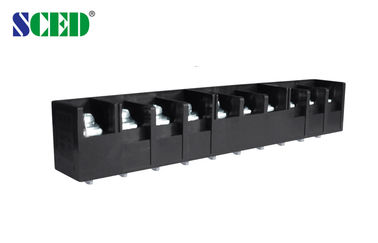

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block

  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB2000-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block

Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 75 600 / 75 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 / 75 1000 / 75 1000 / 75
Rated Surge Voltage KV 12 12 12
Rated Connecting Capacity mm2 16
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4x8.4
Stripping Length mm 16-18
Screw / Torque / lbf.in M6 / 20-22





Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block 0







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 20.00mm 600V 75A 10P Barrier Terminal Block Power Terminal Block 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
