| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE, CQC |
| Model Number: | TB2000-03F-C |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| High Light: | electrical terminal block,barrier type terminal block |
||
|---|---|---|---|

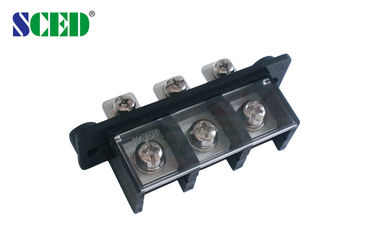

Pitch 21.00mm 600V 65A 3P Barrier Terminal Block Power Terminal Block
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 65 | 600 / 65 | 600 / 5 |
| Wire Range AWG | 26-4 | 26-4 | 26-4 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 65 | 500 / 65 | 800 / 65 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 4.0x13.4 | ||
| Stripping Length mm | 15-17 | ||
| Screw / Torque / lbf.in | M 5 /16-18,M6/20-22 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
