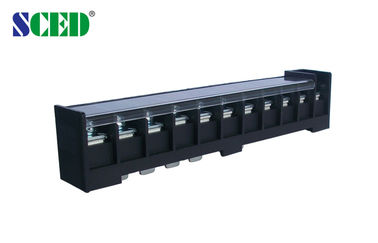

Pitch  18.00mm   600V  75 / 30A  11P   Barrier Terminal Block   Power Terminal Block

Pitch 18.00mm 600V 75 / 30A 11P Barrier Terminal Block Power Terminal Block

  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB2000-02-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 18.00mm 600V 75 / 30A 11P Barrier Terminal Block Power Terminal Block

Pitch 18.00mm 600V 75 / 30A 11P Barrier Terminal Block Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 75/30 600 / 75/30 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 75 1000 / 75 1000 / 75
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4/16
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 1.9x10.4
Stripping Length mm 10-12/16-18
Screw / Torque / lbf.in M 5/18-20 ,M6 20-22





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch  18.00mm   600V  75 / 30A  11P   Barrier Terminal Block   Power Terminal Block 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Pitch  18.00mm   600V  75 / 30A  11P   Barrier Terminal Block   Power Terminal Block 1
