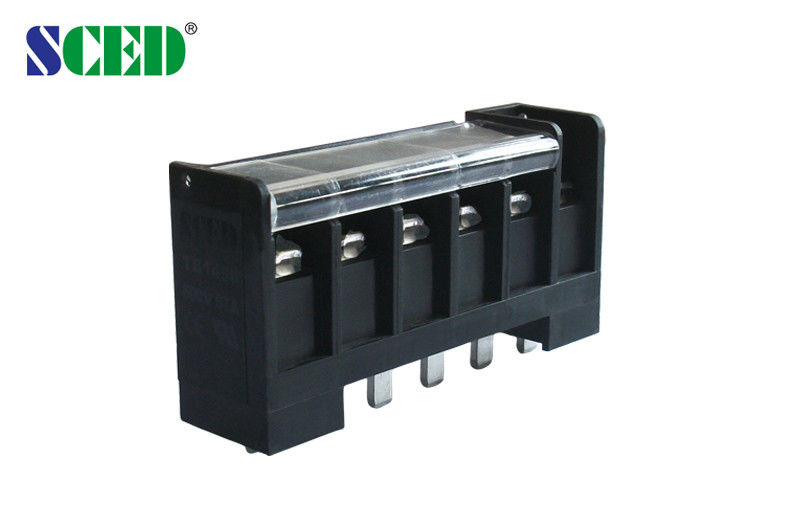

Pitch 14.50mm 600V 57A 4 - 14P Barrier Terminal Block Power Terminal Block

Pitch 14.50mm 600V 57A 4 - 14P Barrier Terminal Block Power Terminal Block

  • Pitch  14.50mm   600V  57A   4 - 14P   Barrier Terminal Block   Power Terminal Block
Pitch  14.50mm   600V  57A   4 - 14P   Barrier Terminal Block   Power Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TB1450a-05-C
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Highlight:

barrier type terminal block

,

pcb terminal blocks

Pitch 14.50mm 600V 57A 4 - 14P Barrier Terminal Block Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 57 600 / 57 600 / 5
Wire Range AWG 22-6 22-6 22-6
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 57 1000 /
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4x5.2
Stripping Length mm 12-15
Screw / Torque / lbf.in M 5 / 18-20





Pitch  14.50mm   600V  57A   4 - 14P   Barrier Terminal Block   Power Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch  14.50mm   600V  57A   4 - 14P   Barrier Terminal Block   Power Terminal Block 1







Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch  14.50mm   600V  57A   4 - 14P   Barrier Terminal Block   Power Terminal Block 2
