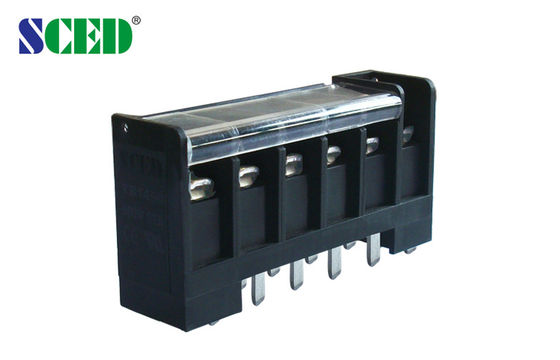

Pitch 14.50mm 600V 40A 4 - 14P Barrier Terminal Block Power Terminal Block
-
Highlight
electrical terminal block
,barrier type terminal block
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE, CQC
-
Model NumberTB1450-00-D5-C
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Pitch 14.50mm 600V 40A 4 - 14P Barrier Terminal Block Power Terminal Block
Pitch 14.50mm 600V 40A 4 - 14P Barrier Terminal Block Power Terminal Block
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 202-8 | 22-8 | 22-8 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 40 | 800 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 6 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 1.9x3.2 | ||
| Stripping Length mm | 12-15 | ||
| Screw / Torque / lbf.in | M 5 / 18-20 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
