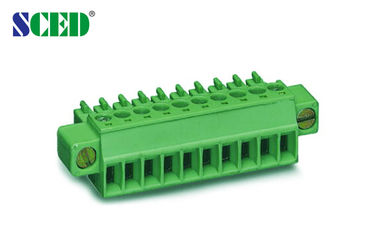

Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block

Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block

Products - Plug In Terminal Block
  • Highlight

    power terminal block connector

    ,

    electric terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381P-20F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block

  • Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block
  • Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block
Get Price Contact Now

Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block

■Single Level; □Double Levels; □Triple Levels



This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF



Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
Wire Range AWG 16-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M2 / 2-2.2





Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Plug - in Terminal Block Pitch 3.50mm 300V 8A Plug Female Socket 2P - 22P Pluggable Terminal Block 2
