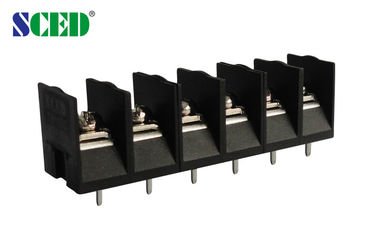

Pitch  10.00mm   600V  30A  2P or 3P  Barrier Terminal block  power terminal block

Pitch 10.00mm 600V 30A 2P or 3P Barrier Terminal block power terminal block

  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB1100-18
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 10.00mm 600V 30A 2P or 3P Barrier Terminal block power terminal block

Pitch 10.00mm 600V 30A 2P or 3P Barrier Terminal block power terminal block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30 600 / 30 600 / 5
Wire Range AWG 10-22 10 / 22 10-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 30 800 / 30 1000 / 30
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.6
Stripping Length mm 10-11
Screw / Torque / lbf.in M 3.5 / 8-10





Pitch  10.00mm   600V  30A  2P or 3P  Barrier Terminal block  power terminal block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Pitch  10.00mm   600V  30A  2P or 3P  Barrier Terminal block  power terminal block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch  10.00mm   600V  30A  2P or 3P  Barrier Terminal block  power terminal block 2
