Barrier Terminal block Pitch 9.50mm 600V 30A 9P power terminal block
-
Highlight
electrical terminal block
,barrier type terminal block
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE, CQC
-
Model NumberTB1100-17
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

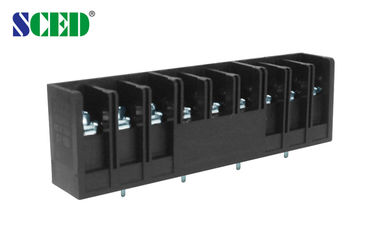

Barrier Terminal block Pitch 9.50mm 600V 30A 9P power terminal block
Barrier Terminal block Pitch 9.50mm 600V 30A 9P power terminal block
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | 600 / 5 |
| Wire Range AWG | 10-22 | 10 / 22 | 10-22 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 30 | 1000 / 30 | 1000 / 30 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.2 | ||
| Stripping Length mm | 8-10 | ||
| Screw / Torque / lbf.in | M 4 / 10.6-13 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
