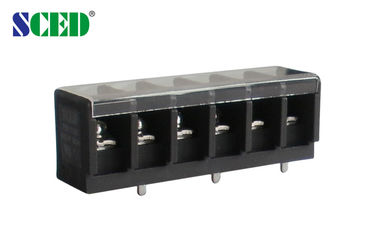

Barrier Terminal block Pitch 11.10mm 600V 20A 2P-12P Pwer terminal block

Barrier Terminal block Pitch 11.10mm 600V 20A 2P-12P Pwer terminal block

  • Barrier Terminal block  Pitch  11.10mm  600V  20A 2P-12P Pwer terminal block
Barrier Terminal block  Pitch  11.10mm  600V  20A 2P-12P Pwer terminal block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE, CQC
Model Number: TB1100-15
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Highlight:

electrical terminal block

,

pcb terminal blocks

Barrier Terminal block Pitch 11.10mm 600V 20A 2P-12P Pwer terminal block







Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 20 600 / 20 600 / 5
Wire Range AWG 12-22 12 / 22 12-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 20 800 / 20 1000 / 20
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 10-12
Screw / Torque / lbf.in M 4 / 10.6-13





Barrier Terminal block  Pitch  11.10mm  600V  20A 2P-12P Pwer terminal block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Barrier Terminal block  Pitch  11.10mm  600V  20A 2P-12P Pwer terminal block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..







Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Barrier Terminal block  Pitch  11.10mm  600V  20A 2P-12P Pwer terminal block 2
