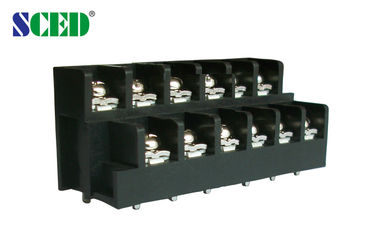

Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block

Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block

Products - Barrier Terminal Block
  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB1100-02
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block

  • Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block
  • Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block
Get Price Contact Now

Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30   300 / 10
Wire Range AWG 12-24   12-24
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 32 800 / 32 1000 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.3
Stripping Length mm 9-10
Screw / Torque / lbf.in M 4 / 10-13







Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch 11.00mm 300V 30A 4*2P - 16*2P Barrier Terminal block power terminal block 2
