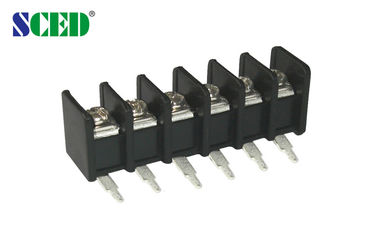

Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block

Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB1100-01V
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block

  • Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block
  • Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block
Get Price Contact Now

Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 10-18   10-18
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 41 630 / 41 800 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.6
Stripping Length mm 9-10
Screw / Torque / lbf.in M 4 / 10-13







Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block 0







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Barrier Terminal block Pitch 11.00mm 300V 30A 2 - 22P power terminal block 2
