Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block

Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block

Products - Plug In Terminal Block
  • Highlight

    power distribution terminal block

    ,

    power terminal block connector

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381H-20F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block

  • Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block
  • Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block
Get Price Contact Now

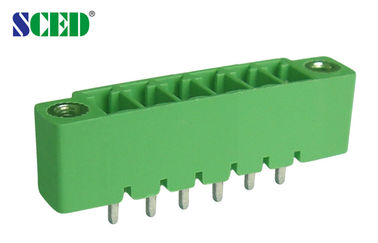

Header, Male Sockets, Pitch: 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels



This header match with plug series: TP381P-20F, TP381P-21F, TP381P-22F, TP381P-23F



Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block 0

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm 0.8 x 0.8





Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Header, Male Sockets, Pitch 3.50mm, 2P-20P, 300V 8A, Pluggable Terminal Blocks, Plug-in Terminal Block 2
