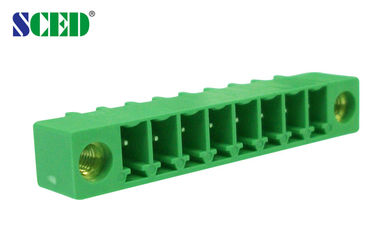

Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block

Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block

Products - Plug In Terminal Block
  • Highlight

    power distribution terminal block

    ,

    power terminal block connector

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381H-07VF
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block

  • Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block
  • Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block
Get Price Contact Now

Pluggable Terminal blocks,Pitch: 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block





■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm 0.8 x 0.8





Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block 1





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks



Pluggable Terminal blocks,Pitch 3.81mm, 300V 8A, 2P-22P, Socket, Plug-in terminal block 2
