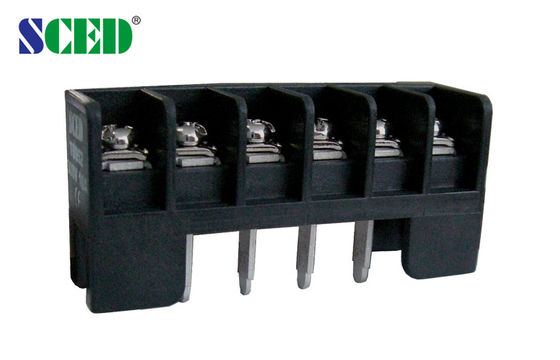

4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector

4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector

  • 4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector
4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TB952-03
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

barrier type terminal block

,

pcb terminal blocks

4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector









Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 14-22   14-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 32 630 / 32 800 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.4x3.4
Stripping Length mm 8-9
Screw / Torque / lbf.in M 3.5 / 7-10







4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



4 - 14P Power Barrier Terminal Block Pitch / Terminal Block Connector 2
