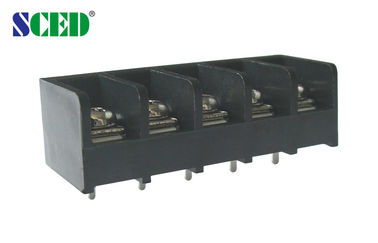

Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block

Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block

  • Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block
Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TB952-02
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

electrical terminal block

,

pcb terminal blocks

Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block


Parameter and Drawing Specifications:

UL Technical DataBCD
Rated Voltage / Current V/A300 / 20 300 / 10
Wire Range AWG12-22 12-22
IEC Technical Data
Overvoltage Category
Contamination Class322
Rated Voltage / Current V/A500 / 32630 / 32800 / 32
Rated Surge Voltage KV666
Rated Connecting Capacity mm24
Material
Insulation Material / Inflammability ClassPBT / UL94, V-0
Terminal / PlatingBrass /Tin Plated
Screw / PlatingSteel / Nickel Plated
Other Data
PCB Hole Diameter mmφ2.1
Stripping Length mm8-9
Screw / Torque / lbf.inM 3.5 / 7-10



Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block 0


Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block 1

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand


Pitch 9.525mm Barrier Terminal Block 300V 20A 2 - 24P Power Terminal Block 2
