| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE,CQC |
| Model Number: | TB870-00 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Get latest price |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | T/T |
| High Light: | electrical terminal block,barrier type terminal block |
||
|---|---|---|---|

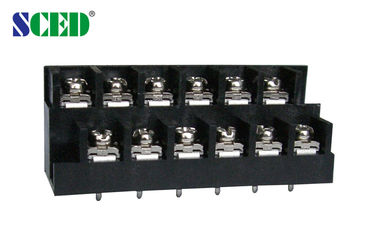

Pitch 8.70mm 250V 15A 2 × 2 – 14 × 2P Barrier Terminal Blocks Power Terminal Blocks
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 250 / 15 | 250 / 10 | |
| Wire Range AWG | 14-26 | 14-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 24 | 400 / 24 | 630 / 24 |
| Rated Surge Voltage KV | 5 | 5 | 5 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.6 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in |
M 3.5 / 7-10 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
