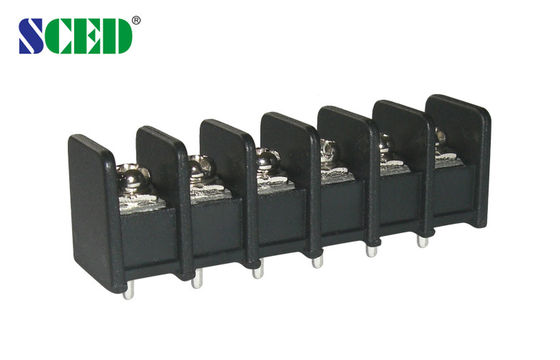

Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A

Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A

  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB825-00
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A



Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A









Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 32 400 / 32 630 / 32
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 6-7
Screw / Torque / lbf.in M 3.5 / 7-10



Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A 0







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Power Supply Barrier Terminal Block 2P - 24P 8.255mm With 300V 20A 2
