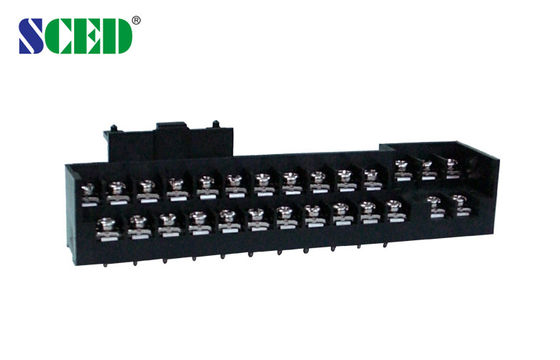

Telephone 8.255mm Barrier Terminal Block / Power Distribution Terminal Block

Telephone 8.255mm Barrier Terminal Block / Power Distribution Terminal Block

  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB825-00
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Telephone 8.255mm Barrier Terminal Block / Power Distribution Terminal Block



Telephone 8.255mm Barrier Terminal Block / Power Distribution Terminal Block









Parameter and Drawing Specifications:



UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 32 400 / 32 630 / 32
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 6-7
Screw / Torque / lbf.in M 3.5 / 7-10



Telephone 8.255mm Barrier Terminal Block / Power Distribution Terminal Block 0







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Telephone 8.255mm Barrier Terminal Block / Power Distribution Terminal Block 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
