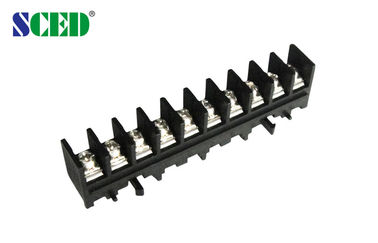

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Number Of Contacts
    2P-18P
  • Pitch
    7.62mm
  • Rated Current
    15A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    14-22
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-20V
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 24

630 / 24

800 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.9

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

 15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE 1





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE 2





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
