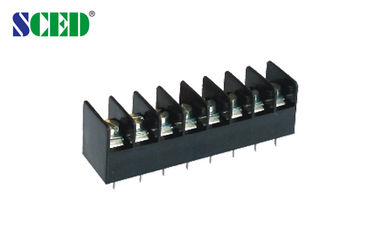

10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG
-
Highlight
electrical terminal block
,pcb terminal blocks
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
Pitch6.35mm
-
Rated Current10A
-
Rated Voltage300V
-
TypeBarrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range18-22
-
Place of OriginChina
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTB762-18
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG
10A High Voltage Barrier Terminal Block Connectors Pitch 6.35mm 18 AWG - 22 AWG
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 10 |
|
300 / 10 |
|
Wire Range AWG |
18-22 |
|
18-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 10 |
320 / 10 |
630 / 10 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
0.75 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5.5-7 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
