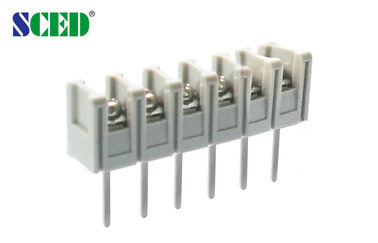

High Voltage PCB Terminal Block Barrier Type 300V 15A 2 Pin - 16 Pin
-
Highlight
electrical terminal block
,barrier type terminal block
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
Pitch7.62mm
-
Rated Current15A
-
Rated Voltage300V
-
TypeBarrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
-
Wire Range2 Pin - 16 Pin
-
Place of OriginChina
-
Brand NameSCED
-
CertificationCE, UL
-
Model NumberTB762-15
-
Minimum Order Quantity1000
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
High Voltage PCB Terminal Block Barrier Type 300V 15A 2 Pin - 16 Pin
High Voltage PCB Terminal Block Barrier Type 300V 15A 2 Pin - 16 Pin
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
|
Wire Range AWG |
14-24 |
|
14-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.7 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers' demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Our products are sold all over the world, you can rest assured.
