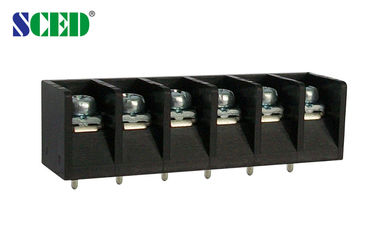

Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof

Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Pitch
    7.62mm
  • Rated Current
    10A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    16-24
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-11-D1-T4
  • Minimum Order Quantity
    500
  • Price
    Get the latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof

  • Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof
  • Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof
Get Price Contact Now







Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

16-24



16-24

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 17

320 / 17

400 / 17

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Zinc plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7





Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



 Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof 1





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

 Barrier Industrial Terminal Block Connectors 2 Pin - 22 Pin Waterproof 2





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
