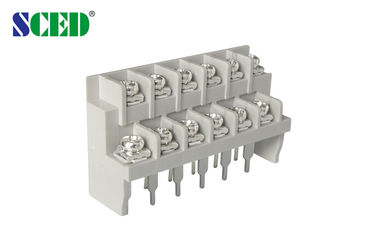

Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage

Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Number Of Contacts
    2P-22P
  • Pitch
    7.62mm
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    14-22
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ762-08
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage

  • Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage
  • Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage
Get Price Contact Now



Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage





Parameter and Drawing Specifications:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7

Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage 0

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

 Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage 1

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

 Power Distribution Barrier Terminal Blocks Connectors 300v High Voltage 2

Tag:

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

Tags:

electrical terminal block

barrier type terminal block

pcb terminal blocks
