| Place of Origin: | China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TB762-07 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Levels: | Double Levels | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
|---|---|---|---|
| Number Of Contacts: | 2P-22P | Pitch: | 7.62mm |
| Rated Current: | 15A | Type: | Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks |
| High Light: | barrier type terminal block,pcb terminal blocks |
||

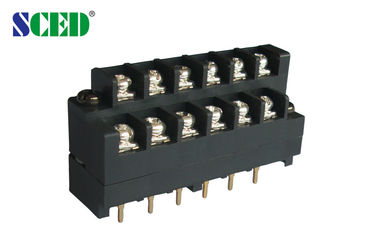

15A Barrier Terminal Block , Double Levels Pitch 7.62mm Power Terminal Blocks
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
300 / 10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Phosphor Bronze/ Gold Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Tag:
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
