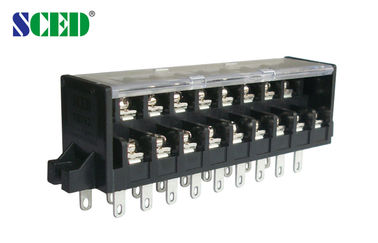

Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage

Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage

Products - Barrier Terminal Block
  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Pitch
    7.62mm
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    14-22
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-00F-D3-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage

  • Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage
  • Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage
Get Price Contact Now



Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage





Parameter and Drawing Specifications:





UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.2x3.4

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7

Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage 0

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

 Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage 1

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

 Pitch 7.62mm Barrier PCB Screw Terminal Block Connectors High Voltage 2
