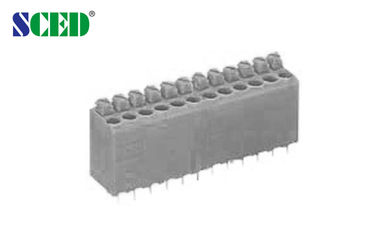

Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof

Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof

Products - Spring Terminal Block
  • Highlight

    spring clamp terminal block

    ,

    wiring terminal blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Grey
  • Number Of Contacts
    Any Poles Available
  • Pitch
    3.81mm
  • Rated Current
    10A
  • Rated Voltage
    300V
  • Type
    Spring Terminal Block,Screwless Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    16-20
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ381-06
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof

  • Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof
  • Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof
Get Price Contact Now





Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof





How to order:
Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof 0




□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory




Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..




Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10





Wire Range                       AWG

16-20





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

9-10


Pitch 3.81mm PCB Spring Terminal Block Connector 300 Volt 10A Waterproof 1



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
