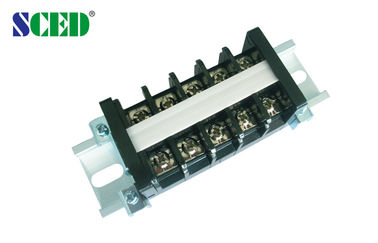

Single Level Barrier Type Power Terminal Blocks 12.00mm Pitch , 600V 30A

Single Level Barrier Type Power Terminal Blocks 12.00mm Pitch , 600V 30A

  • Highlight

    power terminal block connector

    ,

    electric terminal block

  • Type
    Power Terminal Block, PCB Screw Terminal Blocks,Electrical Terminal Blocks
  • Pitch
    12.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    10-20
  • Rated Voltage
    600V
  • Rated Current
    30A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR30-02-FaM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Single Level Barrier Type Power Terminal Blocks 12.00mm Pitch , 600V 30A

Detailed product Description:

Single Level Barrier Type Power Terminal Blocks 12.00mm Pitch , 600V 30A, any pole available, High Current Terminal connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.




How to order:

Single Level Barrier Type Power Terminal Blocks 12.00mm Pitch , 600V 30A 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-20

10-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 30

800 / 30

1000 / 30

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

5.5

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M4 / 10.6-13








Single Level Barrier Type Power Terminal Blocks 12.00mm Pitch , 600V 30A 1




Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
