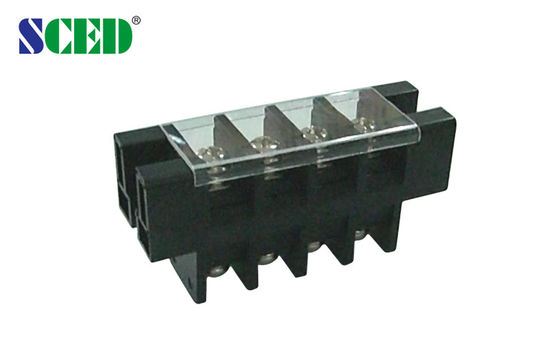

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A

Products - Power Terminal Blocks
  • Highlight

    power terminal block connector

    ,

    electric terminal block

  • Type
    Power Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks
  • Pitch
    27.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    30-1/0
  • Rated Voltage
    600V
  • Rated Current
    150A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD150-01-C
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A

  • 27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A
  • 27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A
Get Price Contact Now

Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..




Detailed product Description:
27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A

■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors




How to order:

27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A 0



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150

600 / 150



Wire Range                       AWG

30-1/0

30-1/0



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

50

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16-18

Screw / Torque                    / lbf.in

M8 / 31-40









27.0mm Through Panel Power Terminal Blocks Connectors with Any Poles 600V 150A 1


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
