| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TB1100-02 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Power Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks | Pitch: | 11.0mm |
|---|---|---|---|
| Number Of Contacts: | 4*2P - 16*2P | Wire Range: | 12-24 |
| Rated Voltage: | 300V | Rated Current: | 10A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | power distribution terminal block,power terminal block connector |
||
Detailed product Description:

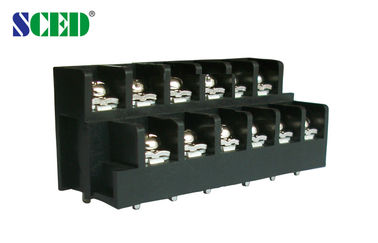

Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/30 |
| 300/10 |
Wire Range AWG | 12-24 |
| 12-24 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 32 | 800 / 32 | 1000 / 32 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 4 | ||
Material |
| ||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ2.3 | ||
Stripping Length mm | 9-10 | ||
Screw / Torque / lbf.in | M 4 / 10-13 | ||
