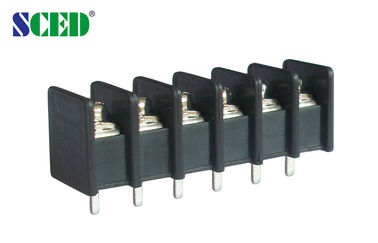

Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P

Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P

  • Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P
Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TB762-01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Power Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks Pitch: 7.62mm
Number Of Contacts: 2P-24P Wire Range: 12-26
Rated Voltage: 300V Rated Current: 10A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

power distribution terminal block

,

power terminal block connector

Detailed product Description:



Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P  Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.





How to order:



Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P 0



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                 mm

φ1.6

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3

















Pitch 7.62mm PCB Barrier Terminal Block for Electric Power , Switch 2P - 24P 1



Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
