| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-16N-01 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block | Pitch: | 16.5mm |
|---|---|---|---|
| Number Of Contacts: | 2P-16P | Wire Range: | 4-22 |
| Rated Voltage: | 600V | Rated Current: | 85A |
| Color: | Grey | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | pcb mount terminal blocks,power distribution terminal |
||

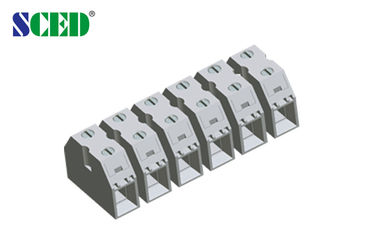

Pitch 16.50mm, 600V 85A, 2-16P, Feed Through Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Feed through terminal blocks, Feed through terminal connectors, penal mount terminal block, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 85 |
600 /85 |
600 / 5 |
|
Wire Range AWG |
4-22 |
4-22 |
4-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 85 |
1000 / 85 |
1000 / 85 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Conduction Board Plating |
Copper / Nickel Plated |
||
|
Clamp Cage Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw / Torque / lbf.in |
M 5 / 15-18 |
||
