| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-6N-01 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block | Pitch: | 13.50mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 8-26 |
| Rated Voltage: | 600V | Rated Current: | 50A |
| Color: | Grey | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | pcb mount terminal blocks,power distribution terminal |
||

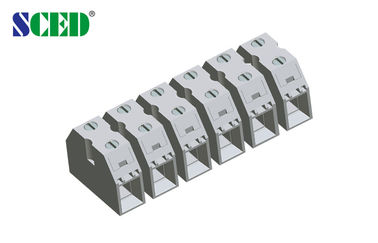

600V 50A Electrical Panel Mount Terminal Block Pitch 13.50mm, Double Levels
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 50 |
600 /150 |
|
|
Wire Range AWG |
8-26 |
8-26 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 57 |
1000 / 57 |
1000 / 57 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
6 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66/ UL94, V-0 |
||
|
Conduction Board Plating |
Copper/Nickel Plated |
||
|
Clamp Cage Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 4 / 8-10.6 |
||
Competitive Advantage:
