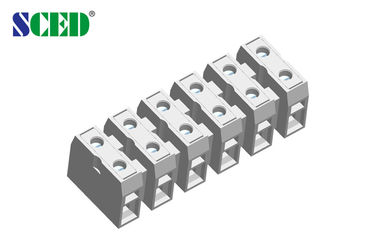

12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A

12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A

  • 12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A
12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-5N-01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 12.00mm
Number Of Contacts: Any Poles Available Wire Range: 10-30
Rated Voltage: 600V Rated Current: 30A
Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

panel mount terminal block connector

,

power distribution terminal

12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


How to order:
12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 41

1000 / 41

1000 / 41

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66/ UL94, V-0

Conduction Board Plating

Copper/Nickel Plated

Clamp Cage Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3 / 4.4-5.3




12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
