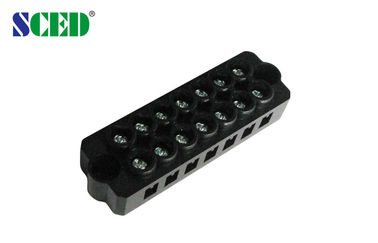

Black 7.40mm 300V 20A 7P Panel Mount Terminal Block For Switch / PCB

Black 7.40mm 300V 20A 7P Panel Mount Terminal Block For Switch / PCB

  • Highlight

    panel mount terminal block connector

    ,

    pcb mount terminal blocks

  • Type
    Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block
  • Pitch
    7.40mm
  • Number Of Contacts
    7P
  • Wire Range
    16-22
  • Rated Voltage
    300V
  • Rated Current
    20A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-3N-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Black 7.40mm 300V 20A 7P Panel Mount Terminal Block For Switch / PCB


Pitch 7.40mm, 300V 20A, 7P, Feed-Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


How to order:
Black 7.40mm 300V 20A 7P Panel Mount Terminal Block For Switch / PCB 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 20

300 / 20



Wire Range                       AWG

16-22

16-22



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 20

320 / 20

400 / 20

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PL/ UL94, V-0

Conduction Board Plating



Clamp Cage Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

5-6

Screw / Torque                    / lbf.in

M 3 / 4.4-5.3



Black 7.40mm 300V 20A 7P Panel Mount Terminal Block For Switch / PCB 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
