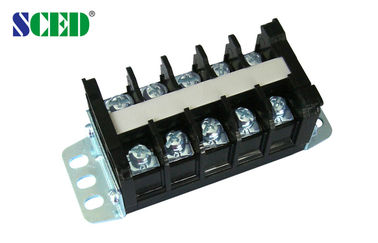

14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks

14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks

  • 14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks
14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR40-01-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 14.00mm
Number Of Contacts: Any Poles Available Wire Range: 22-8
Rated Voltage: 600V Rated Current: 40A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

panel mount terminal block connector

,

power distribution terminal

How to order:
14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks 0



Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





14.00mm Panel Mount Electrical Terminal Block, 600v 40a Pcb Barrier Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 40

600 / 40



Wire Range                       AWG

22-8

22-8



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /40

1000 / 40

1000 / 40

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

10-12

Screw Torque                    mm

M5 / 14-18




14.00mm Panel Mount Electrical Terminal Block , 600v 40a Pcb Barrier Terminal Blocks 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
